| Item No. | Flow Rate | Spray From | Flat width | Diameter | Wall Thickness | Roll Length | Optimal pressure | Bursting pressure |
| SML 6 – 6 | 18 L/min & 10 m |  |
6 cm | 38 mm | 0.22 mm | 200 m | 0.5 bar | 0.9 bar |

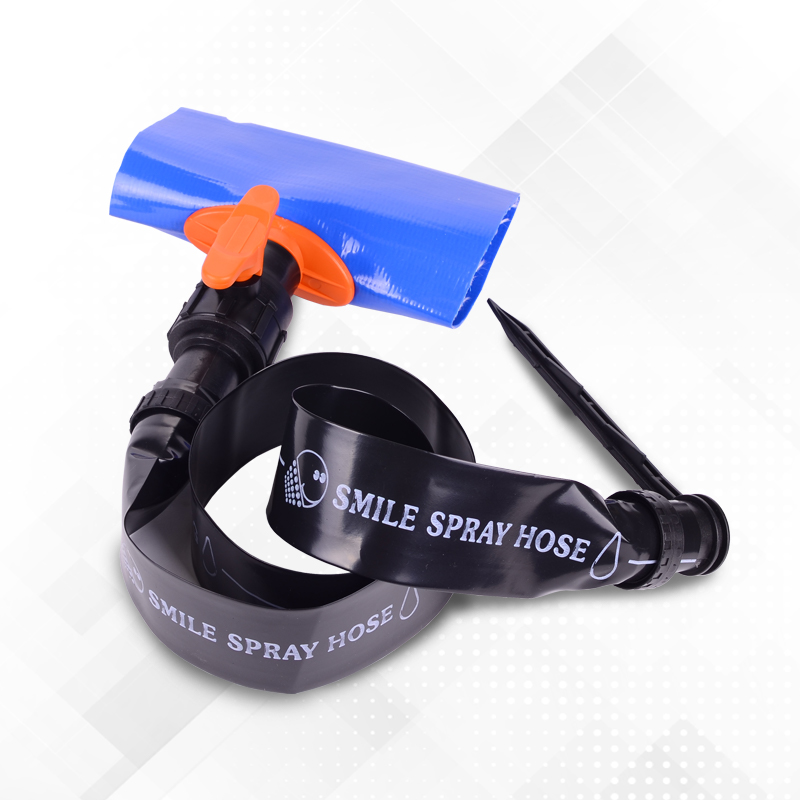

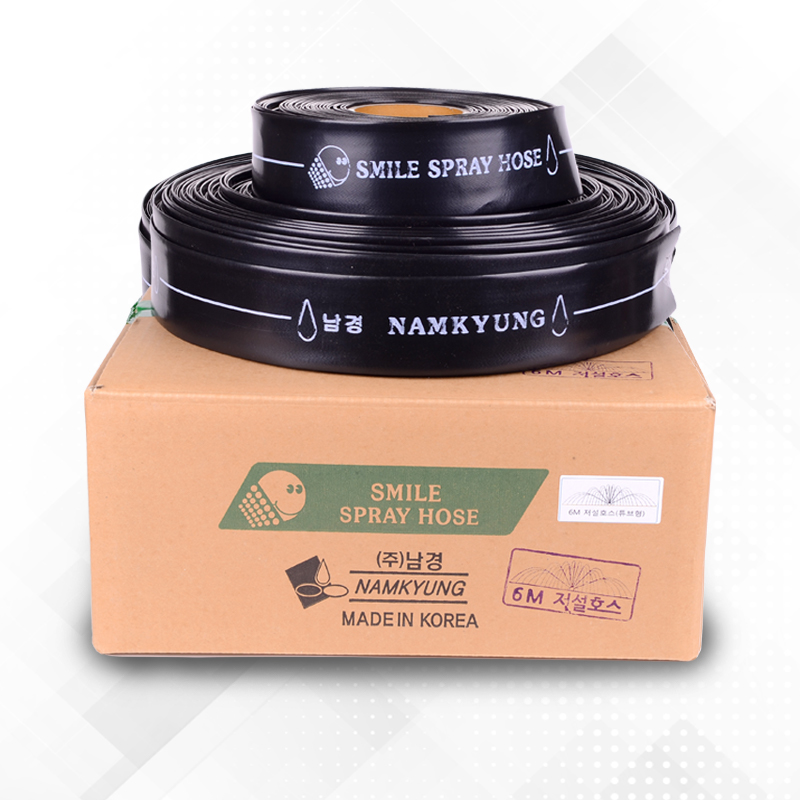

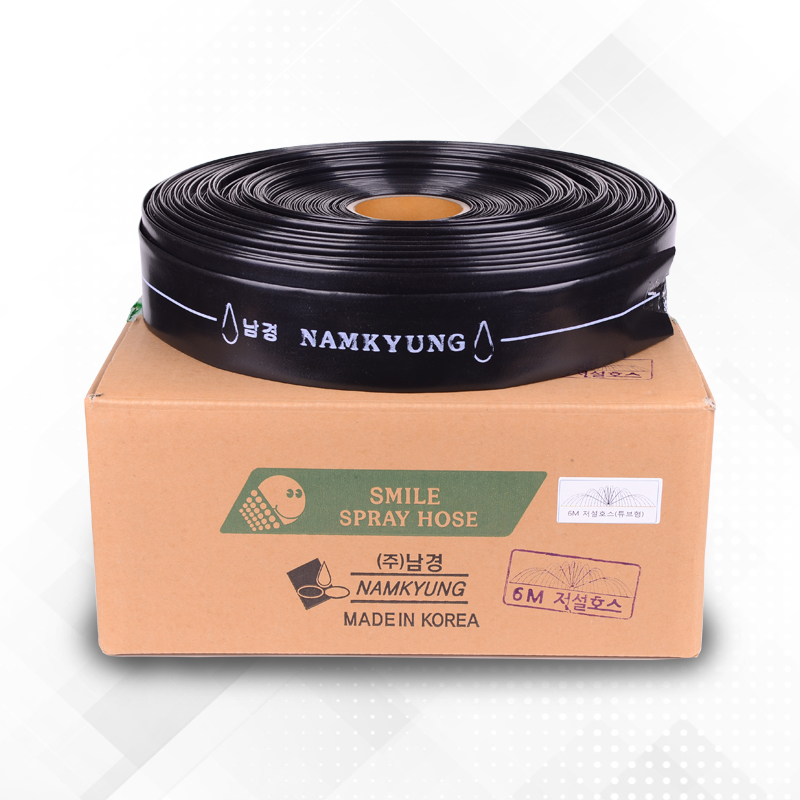

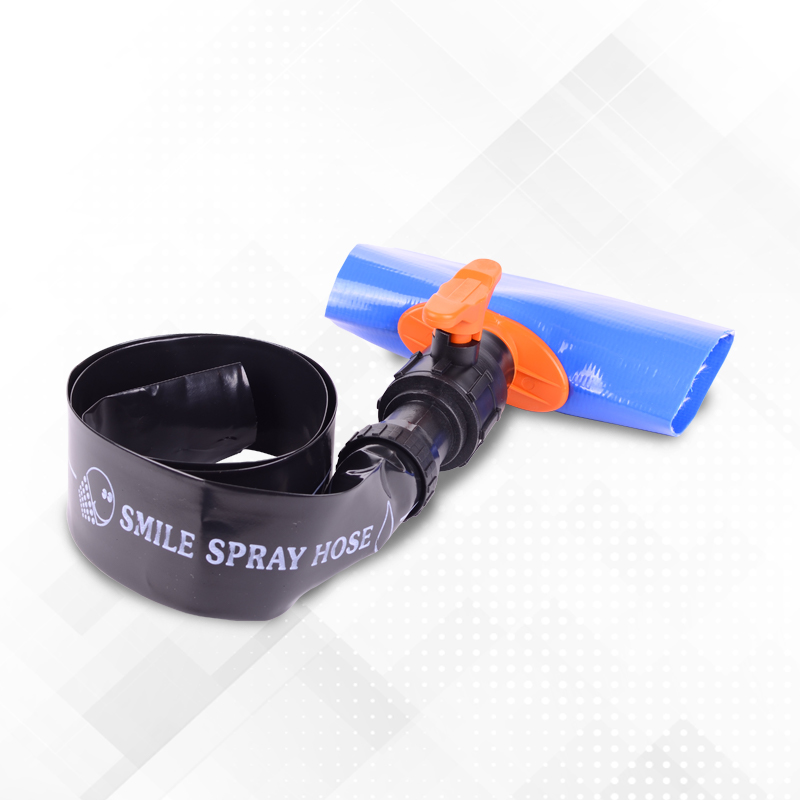

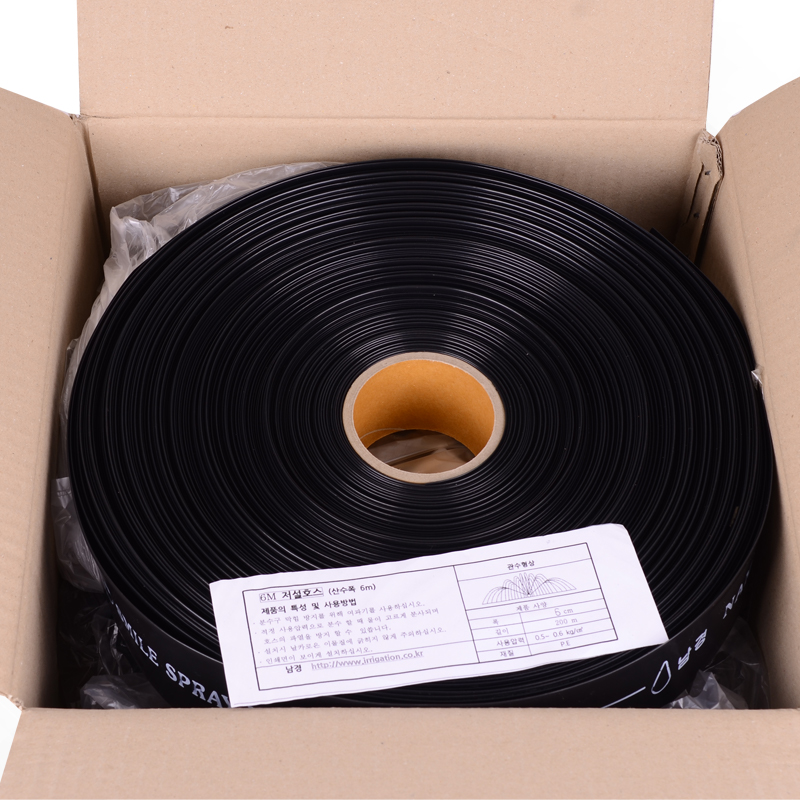

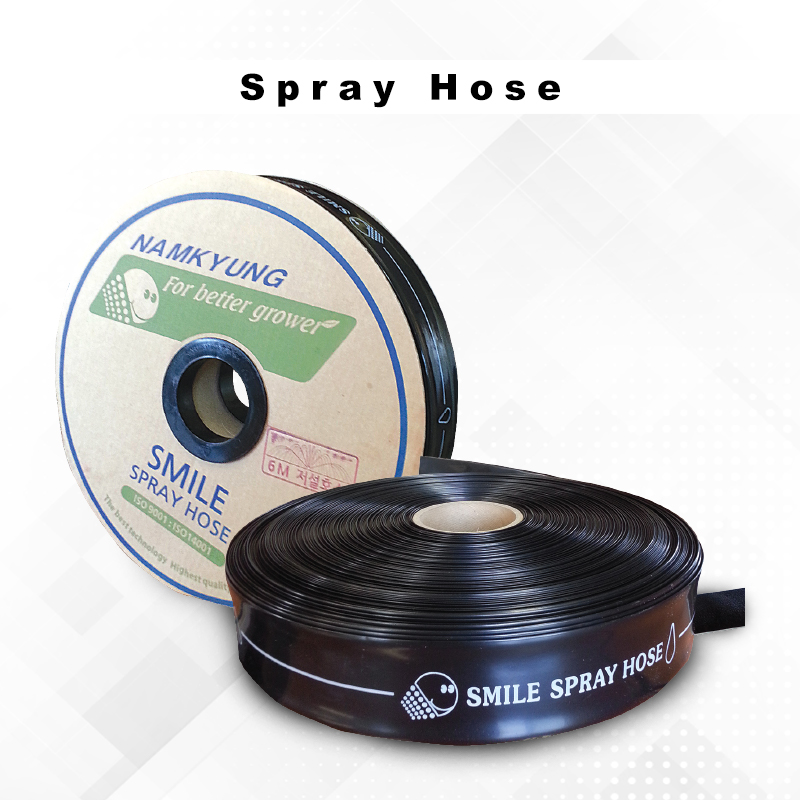

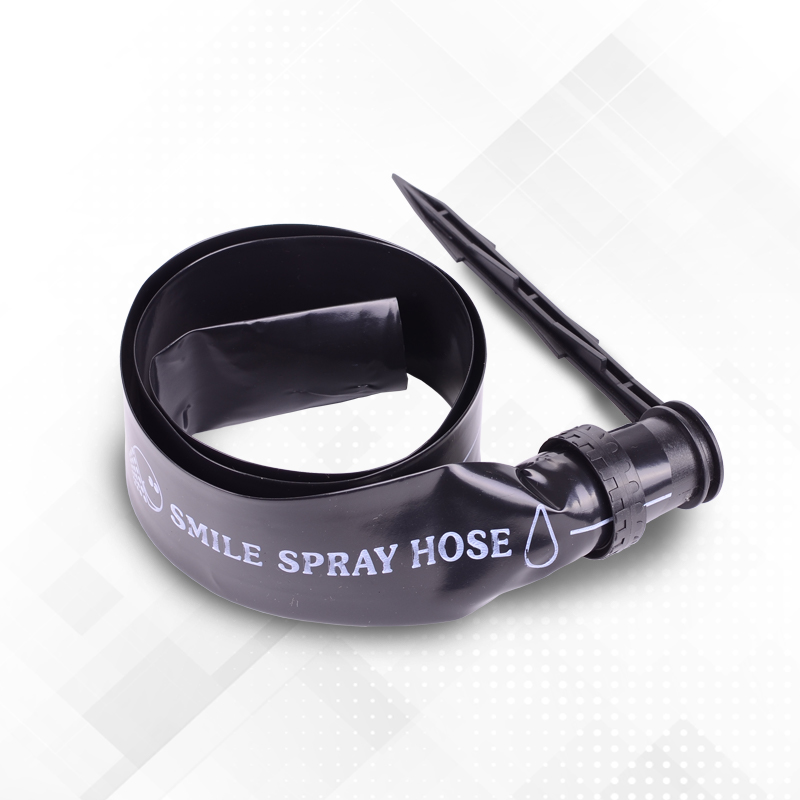

Smile Spray Hose (soaker hose) – SML 6 – 6
Flow Rate: 18 L/min & 10 m
Spray From: 6 cm
Flat width: 6 cm
Diameter: 38 mm
Wall Thickness: 0.22 mm
Roll Length: 200 m
Optimal pressure: 0.5 bar
Bursting pressure: 0.9 bar
Description
Related products
Valve off take
Size: 16mm
Application: Drip tape -- At start or end of drip line
Lay flat Hose – 1.5 inch
Nominal ID(Inch): 1.5 inch
Inside diameter (mm): 38 ± 2.0
Wall Thickness (mm): 1.2 ± 0.2
Working Pressure (kgf/cm2): 5.0
Bursting Pressure (kgf/cm2): 15.0
Roll Length (m): 50
50m Roll Weight (Kgs): 10
50m Roll Size (D x H) (cm): 45 * 8
Ring type off take
Size: 16mm
Application: Drip Tape --- LD 16 or Grommet to PE pipe
Water Line
- Excellent durability for multi year usage
- Less Clogging
- Resistant to UV and agricultural chemicals
- Uniform flow rate
Connector Screw type
Size: 16mm
Application: Drip tape -- Drip tape
Lay flat Hose – 3 inch
Nominal ID(Inch): 3 inch
Inside diameter (mm): 77 ± 2.0
Wall Thickness (mm): 1.35 ± 0.2
Working Pressure (kgf/cm2): 4
Bursting Pressure (kgf/cm2): 12.0
Roll Length (m): 50
50m Roll Weight (Kgs): 19
50m Roll Size (D x H) (cm): 45 * 15
Roll Length (m): 100
100m Roll Weight (Kgs): 39
100m Roll Size (D x H) (cm): 60 * 15
Lay flat Hose – 2 inch
Nominal ID(Inch): 2 inch
Inside diameter (mm): 52 ± 2.0
Wall Thickness (mm): 1.2 ± 0.2
Working Pressure (kgf/cm2): 4.5
Bursting Pressure (kgf/cm2): 14.0
Roll Length (m): 50
50m Roll Weight (Kgs): 12.5
50m Roll Size (D x H) (cm): 45 * 10
Water Line – M
- Better flexibility with flat dripper
- Superior durability
- Less Clogging
- Resistant to UV and agricultural chemicals
- Low CV under 0.3
Smile Spray Hose (soaker hose) – SML 6 – 3
Flow Rate: 10 L/min & 10 m
Spray From: 6 cm
Flat width: 6 cm
Diameter: 38 mm
Wall Thickness: 0.20 mm
Roll Length: 200 m
Optimal pressure: 0.3 bar
Bursting pressure: 0.9 bar
Tape to tape connector valve
Size: 16mm
Application: connect 16mm to LD pipe to 16mm LD pipe
Grommet with the groove
Size: 16mm
Application: Coupling for quick start
Lay flat Hose – 4 inch
Nominal ID(Inch): 4 inch
Inside diameter (mm): 103 ± 2.0
Wall Thickness (mm): 1.35 ± 0.2
Working Pressure (kgf/cm2): 4
Bursting Pressure (kgf/cm2): 12.0
Roll Length (m): 50
50m Roll Weight (Kgs): 25.5
50m Roll Size (D x H) (cm): 45 * 18
Roll Length (m): 100
100m Roll Weight (Kgs): 52.5
100m Roll Size (D x H) (cm): 60 * 18
