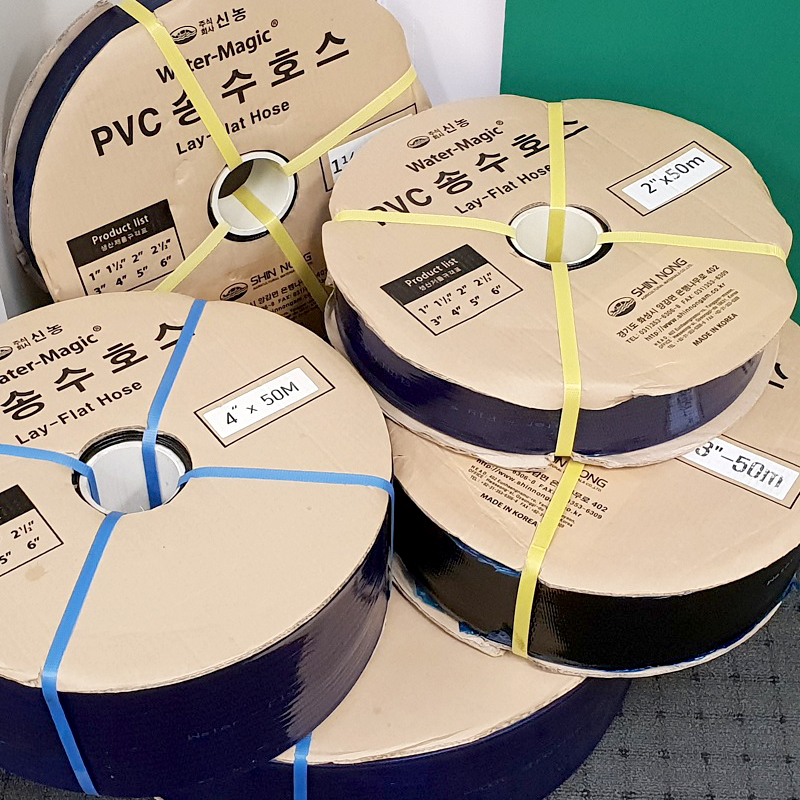

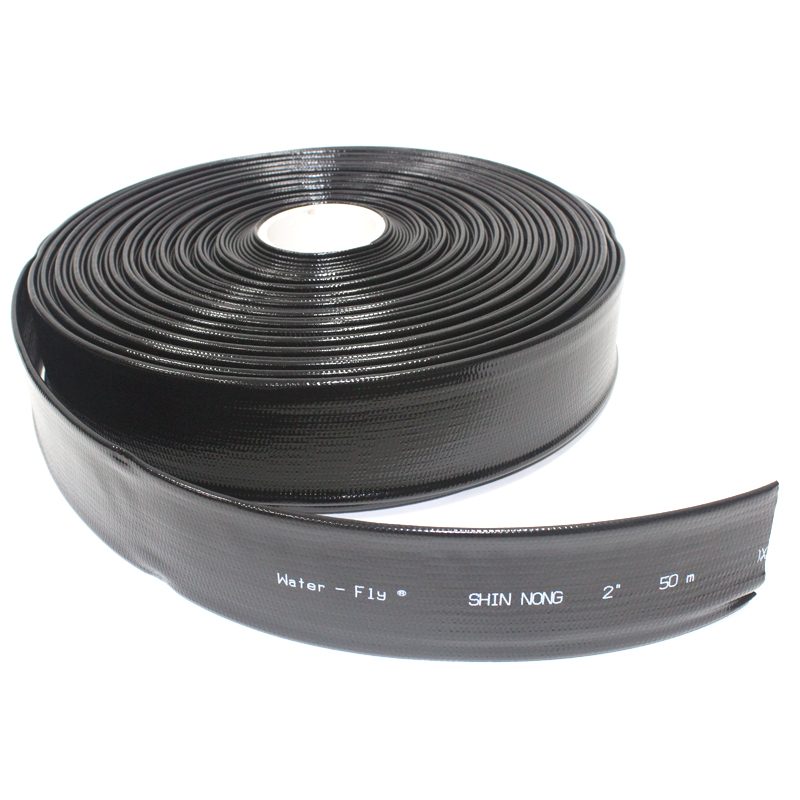

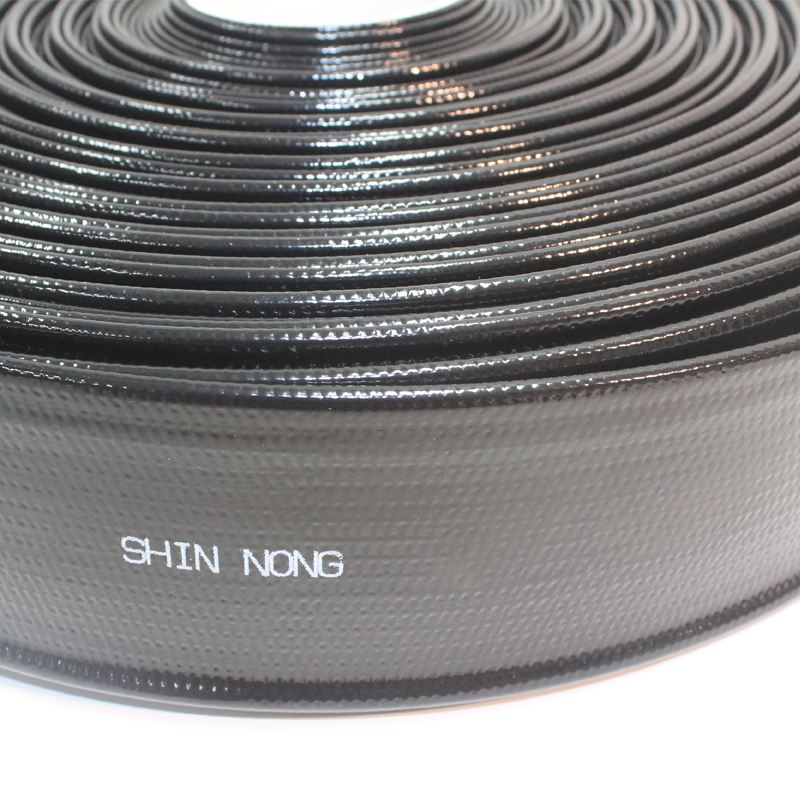

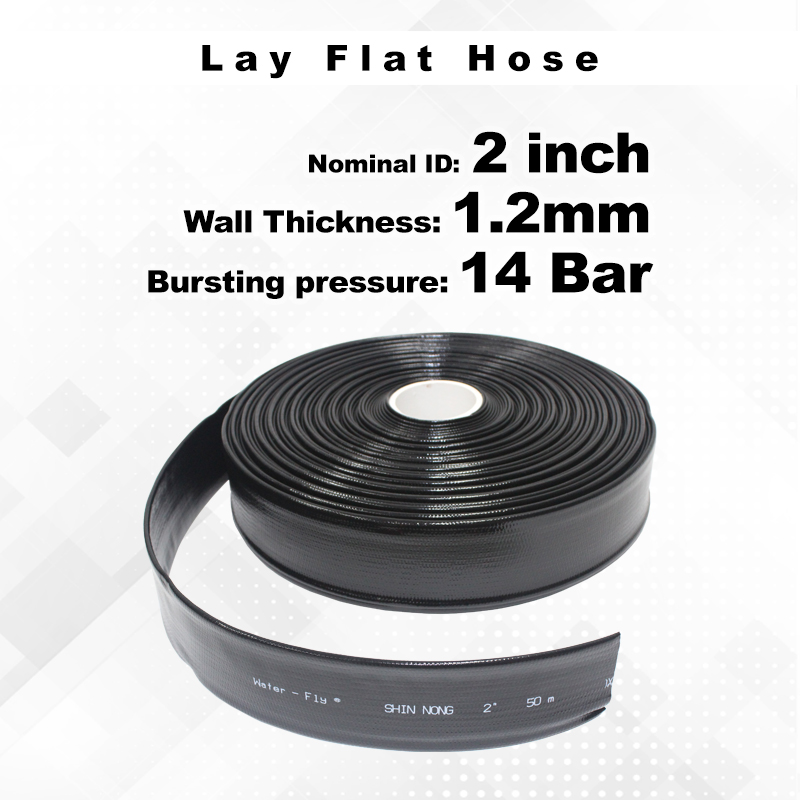

Lay flat Hose – 2 inch
Nominal ID(Inch): 2 inch
Inside diameter (mm): 52 ± 2.0
Wall Thickness (mm): 1.2 ± 0.2
Working Pressure (kgf/cm2): 4.5
Bursting Pressure (kgf/cm2): 14.0
Roll Length (m): 50
50m Roll Weight (Kgs): 12.5
50m Roll Size (D x H) (cm): 45 * 10
