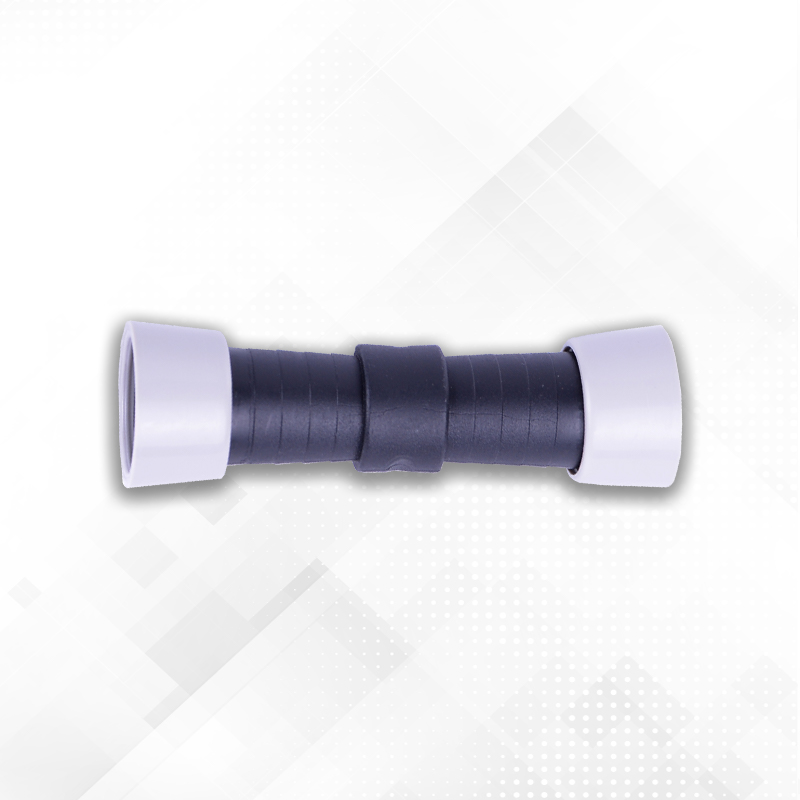

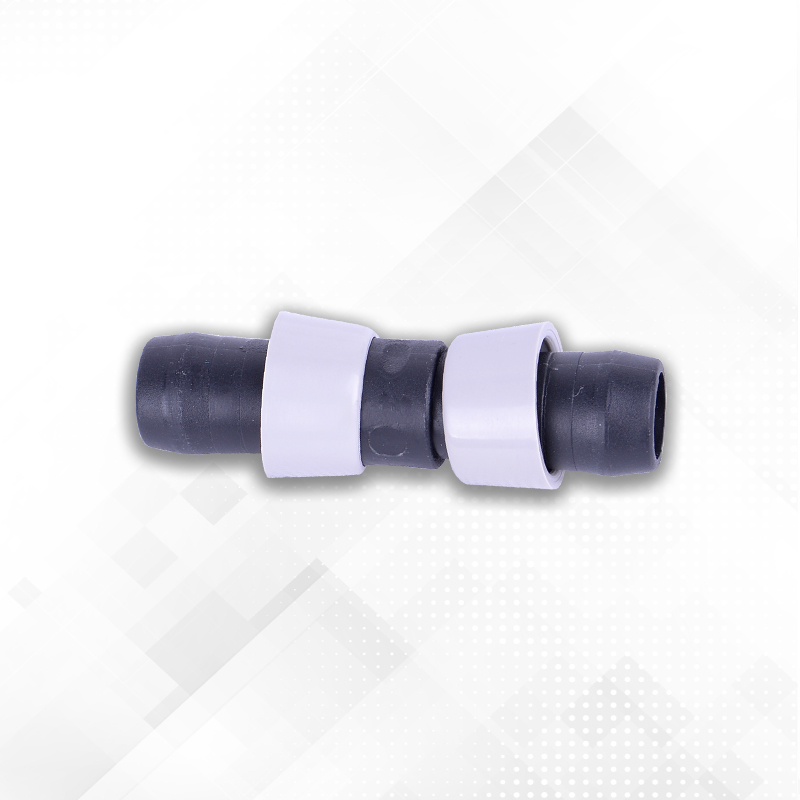

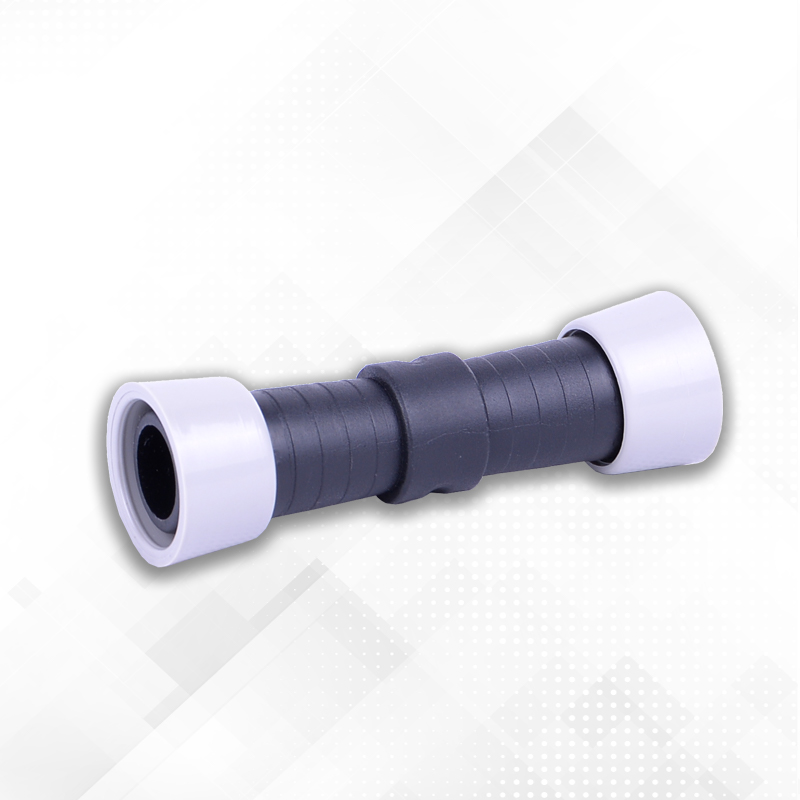

Connector O-ring type
Size: 16mm
Application: Drip Tape — Drip Tape
Related products
Drip Tape Water Fall-Q | 1.8 L/Hr 20cm
Indise Diameter: 16 mm
Wall Thickness: 200micron
Emitter Distance: 5 cm ~ 100 cm
Nominal Flow rate: 1.8 LPH at 1 bar
Working Pressure: 0.5 ~ 1.5 bar
Filtration: 120 mesh
Roll Length: 2500 m

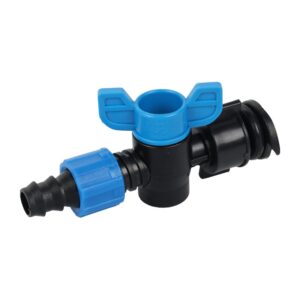

Valve off take
Size: 16mm
Application: Drip tape -- At start or end of drip line
Lay flat Hose – 4 inch
Nominal ID(Inch): 4 inch
Inside diameter (mm): 103 ± 2.0
Wall Thickness (mm): 1.35 ± 0.2
Working Pressure (kgf/cm2): 4
Bursting Pressure (kgf/cm2): 12.0
Roll Length (m): 50
50m Roll Weight (Kgs): 25.5
50m Roll Size (D x H) (cm): 45 * 18
Roll Length (m): 100
100m Roll Weight (Kgs): 52.5
100m Roll Size (D x H) (cm): 60 * 18
Drip Tape Water Fall-Q | 1.1 L/Hr 20cm
Indise Diameter: 16 mm
Wall Thickness: 200micron
Emitter Distance: 5 cm ~ 100 cm
Nominal Flow rate: 1.1 LPH at 1 bar
Working Pressure: 0.5 ~ 1.5 bar
Filtration: 120 mesh
Roll Length: 2500 m
Drip Tape Water Fall-Q | 1.1 L/Hr 25cm
Indise Diameter: 16 mm
Wall Thickness: 200micron
Emitter Distance: 5 cm ~ 100 cm
Nominal Flow rate: 1.1 LPH at 1 bar
Working Pressure: 0.5 ~ 1.5 bar
Filtration: 120 mesh
Roll Length: 2500 m
PE Pipe
HDPE Pipe Spec Outside Diameters(mm) Wall Thickness(mm) Length(m) D16 21.7 2.3 6, 100 D20 27.3 2.8 6, 100 D25 34.3
Smile Spray Hose (soaker hose) – SMH 6 – 3 (Greenhouse)
Flow Rate: 8 L/min & 10 m
Spray From: 6 cm
Flat width: 6 cm
Diameter: 38 mm
Wall Thickness: 0.20 mm
Roll Length: 200 m
Optimal pressure: 0.3 bar
Bursting pressure: 0.9 bar
Grommet with the groove
Size: 16mm
Application: Coupling for quick start
Ring type off take
Size: 16mm
Application: Drip Tape --- LD 16 or Grommet to PE pipe
Drip Tape Water Fall-Q | 1.8 L/Hr 25cm
Indise Diameter: 16 mm
Wall Thickness: 200micron
Emitter Distance: 5 cm ~ 100 cm
Nominal Flow rate: 1.8 LPH at 1 bar
Working Pressure: 0.5 ~ 1.5 bar
Filtration: 120 mesh
Roll Length: 2500 m
Start off lay flat hose to 16mm Tape
Size: 16mm
Application: Lay flat — Drip Tape
Smile Spray Hose (soaker hose) – SML 6 – 3
Flow Rate: 10 L/min & 10 m
Spray From: 6 cm
Flat width: 6 cm
Diameter: 38 mm
Wall Thickness: 0.20 mm
Roll Length: 200 m
Optimal pressure: 0.3 bar
Bursting pressure: 0.9 bar
